Scaffolding

Scaffolding

Standard Frame:

1’ standard frame

2’ standard frame

3’ standard frame

4’ standard frame

5’ standard frame

6’6” standard frame

  • Open end on 1 side, interior ledges on the other side with 14” spacing

Walk-thru frames: 6’6”

Ladder Frame:

  • 3’ ladder frame
  • 4’ ladder frame
  • 5’ ladder frame
  • 6’6” ladder frame
  • 29” wide ladder frame

Access Frame:

5’ access frame

6’ access frame

Coupling pins are included with frames

Braces:

Cross braces:

1X4 cross braces

1X5 cross braces

2X4 cross braces

2X6 cross braces

2X5 cross braces

1X7 cross braces

2X7 cross braces

3X7cross braces

4X7 cross braces

3X4 cross braces

3X4X5 cross braces

3X4X6 cross braces

3X4X7 cross braces

3X4X10 cross braces

Horizontal Braces:

7’ horizontal brace

10’ horizontal brace

Diagonal Braces:

7’ diagonal brace

10’ diagonal brace

Straddle Braces:

4X7 straddle brace

4X10 straddle brace

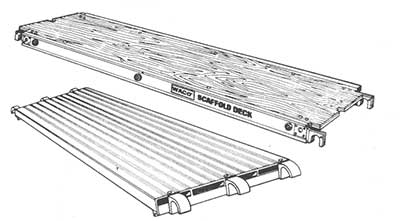

Aluminum Walkboards:

22”X5’ aluminum walkboard

22”X6’ aluminum walkboard

22”X7’ aluminum walkboard

22”X10’ aluminum walkboard

Casters: 8”, 800lb. capacity

Screw Jacks:

Screw jacks adjust from 2” to 12” with plates

Screw jacks adjust from 2” to 18” with plates

Screw jacks adjust from 2” to 18” for casters or base plates

Guardrail Post: (2 toggle pins per post- Extra toggle pins sold and rented separate)

Guardrail sides 5’

Midrails 5’

Guardrail panels 5’ and 7’

Clamps:

Swivel clamps

All purpose clamps

Post Shores:

6’ to 11’ – 9,000 lb. at 6’ to 5,000 lb. at 11’ post shore

8’ to 13’ – 8,000 lb. at 8’ to 4,000 lb. at 13’ post shore

Putlog & Accessories:

Putlog hangers S type

Putlog Angle type

Shoreheads: 8”

Side Brackets:

20” side brackets

23” side brackets

36” side brackets

Wood Plank:

2” X 10” X 8’ OSHA plank wood plank

2” X 10’ X 10’ wood plank

2” X 10’ X 12’ wood plank

2” X 10” X 16’ OSHA plank wood plank

Plywood:

¾” X 4” X 8’ plywood

¾” X 4” X 6’8” plywood

Scaffold Accessories:

  • Coupling pins, when rented without frames
  • Toggle pins
  • T- hoist

Stairways (access way):

  • Access way start unit
  • 5’ access way
  • 6’6” access ways

-Comes with below rails

  • Interior rails
  • Exterior handrails

Exterior Ladders:

  • Ladder 3’ section with clamp
  • Ladder 6’ section with clamp
  • Ladder 7’ section with clamp
  • Ladder clamps

Base Plates:

  • Fixed base plates
  • Swivel base plates

Pipe:

  • 5/8” X 6’ pipe
  • 5/8” X 9’ pipe
  • 5/8” X 12’ up
  • 5/8” X 12 and up

Trash Chutes:

  • Hopper head section trash chute
    • ½’’ deep 40’’ height
    • With chain sets (2 per chute)
    • Maximum height for each chute is 24”
  • Chute section
    • 30” width, 48” height
    • With chain sets (2 per chute)
    • Maximum height for each chute is 42”
  • Parapet Clap
    • Top (rig with rigging equipment)
  • Hoist
    • With 150’ of cable with rigging equipment

Aluminum Stage:

  • Pick/walkboards 500 lb. capacity
  • 12” x 10’
  • 12” x 14’
  • 12” x 16’
  • 12” x 18’
  • 12” x 20’
  • 12” x 24’
  • 12” x 28’
  • 18” x 12’
  • 18” x 16
  • 18” x 20’
  • 18” x 24’
  • 20” x 12’
  • 20” x 14’
  • 24” x 12’
  • 24” x 20’
  • 24” x 24’
  • 24” x 28’
  • 24” x 30’
  • 24” x 32’
  • 24” x 30’
  • 28” x 30’
  • 28” x 32’
  • 28” x 36’

Extendable walkboards:

  • 14” wide, 10’ retracted extendable walkboard
  • 14” wide, 17’ extended walkboard

Other names used for Scaffolding:

  • Standard frames
  • Walk-thru frames
  • Access ladder frames
  • Canopy frames
  • Economy frames
  • Interior scaffolding/ Indy scaffold
  • Mason’s frames
  • Narrow frames
  • Light-duty frames

We have rolling towers
